After a brief discussion with NWX Free-MoN workers and supporters, this is the track plan as of today.

Adding structures, we get:

And, to see just the track:

Perhaps the south-bound interchange track should head west until John Hunt's boats are ready.

Or

However, we need at least one run-around track on the interchange.

Or, better yet; and, there is still room for a few sructures:

Or,

A Main Line Is Built To Run Trains (but not to serve industries - yet)

This video won't play in Android.  Let's see if this new copy of it will play:

 http://modrr.net/freemontrack1.mp4

I have located a few Code 55 turnouts.

Experience is the best teacher.

It's much easier to negotiate the jog in the tracks over a length of seven feet than only three feet as in the post before this one.  I have to decide whether to use curved or straight fascia.   For the record the following video shows things before I made these changes:

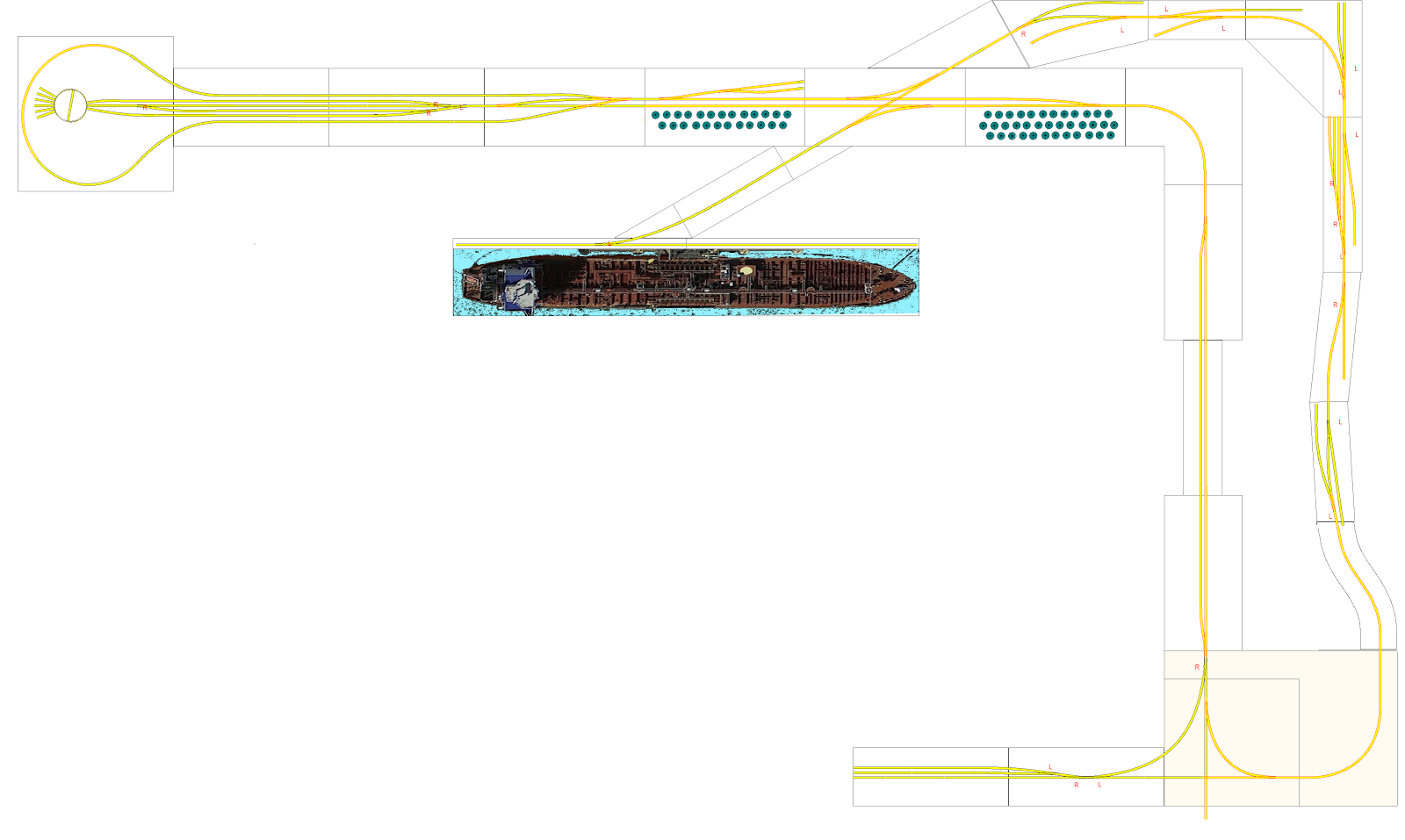

And, this is the track plan I favor today - except that I expect to add as many more industrial sidings as can be smoothly incorporated in an operating model railroad.

This could be finished soon.

I have drawn Will's free-form free-mo modules as best as I can.  Allowing for that and other liberties, this could be ready to run trains and begin scenicking and adding structures pretty soon - especially if John is able to finish his super-tanker.  We will find a way to display it, as it is going to be great.
